Tipper trailers

Flexliner Alu

Lightweight tipper for bulk products.

Lightweight tipper for bulk products

Tipper Trailer for Bulk Products

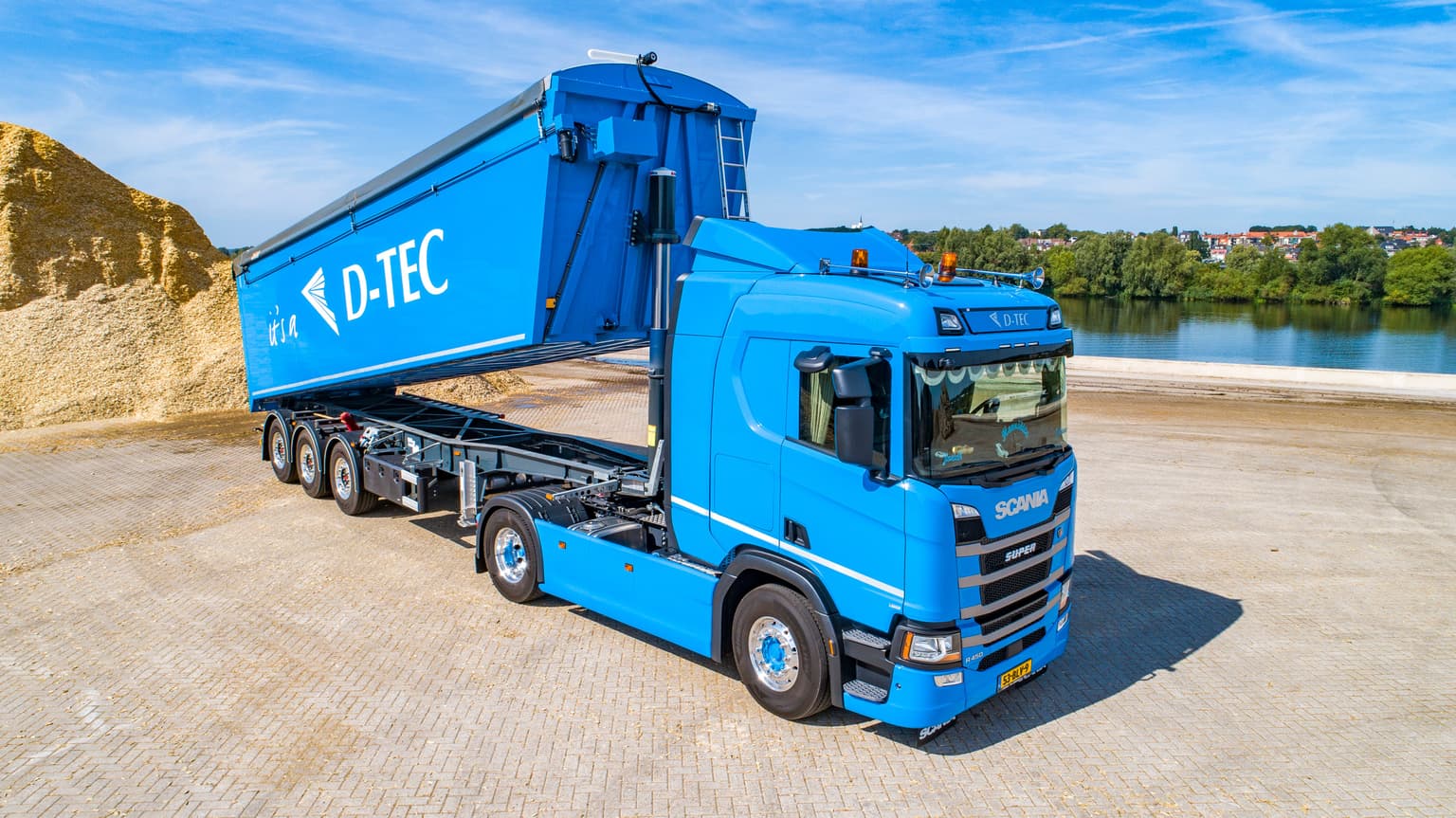

The D-TEC Flexliner Alu is a lightweight aluminum tipper trailer designed for transporting products such as potatoes, sugar beets, grain, household waste, sludge, and biomass.

Optimal Weight Distribution

The D-TEC Flexliner Alu features an aluminum body with a straight or sloped front bulkhead. With various body configurations and the design of the chassis, the weight distribution is optimal. This allows the customer to always transport the maximum allowable weight across different European countries.

The Many Advantages

The D-TEC Flexliners Alu have a robust steel chassis with a unique bracing concept. The tippers have a low center of gravity, and the chassis has high torsional rigidity, improving both safety and stability. The D-TEC Flexliners Alu have a low tare weight due to the use of high-tensile steel in the chassis. The lighter the trailer, the more cargo you can transport on every trip, making it highly efficient.

Maximum Return

The high quality of the D-TEC Flexliners is ensured by a well-thought-out design focused on simplicity, robustness, and low maintenance costs. Additionally, D-TEC tippers retain their value for a long time, whether you're using them for 5 or 10 years. With D-TEC, you are always assured of having the optimal product for your business, with the best total cost of ownership (TCO).

Advantages of a Flexliner Alu Tipper:

  • Trailer with a low tare weight starting at 5,700 kg (56 m³ body).
  • Robust steel chassis.
  • Low center of gravity for increased stability.
  • Unloading via doors, flap, or grain chute.
  • Automatic or manual cover tarps.
  • Optimal weight distribution for different markets.

Custom Options:

  • Door variations.
  • Straight/sloped front bulkhead.
  • Weighing system.
  • Cover tarps.
Specifications
Weight from5.700 kg
King pin weight15.000 kg
Axle weight27.000 kg
Gross trailer weight 42.000 kg
Fifth wheel height1.180 - 1220 mm
3 Fixed axles9.000 kg
Axle inter distance1.410/1.310 mm
Material chassis S700MC
Stepped chassis 80mm
Foldable bumperAluminium
Floor plate 5mm - 110Br. (H34)
Inside width 2480mm
Quality cover sheet 900 gr/m2

The benefits

Every detail has been considered so you can get the most out of it.

Our trailers are designed with your efficiency in mind. Thanks to the high quality and low weight, our trailers offer minimal maintenance costs and high residual value.

With a D-TEC, you are always assured of the optimal product for your business with the best TCO.

Low tare weight

D-TEC trailers are the lightest on the market, with a standard tare weight starting from 4,000 kg. This allows you to carry more weight each trip.

Ease of use

Adjusting the chassis is simple and intuitive. Anyone can work effortlessly with a D-TEC chassis. Safety has also been thoroughly considered.

Low maintenance costs

Thanks to the robust and durable design, maintenance costs are minimal. Our chassis are mechanically extendable, ensuring optimal performance under all weather conditions.

High resale value

Our trailers retain their value for an extended period thanks to their robust quality and ingenious design. With a D-TEC, you get the most out of your investment.
